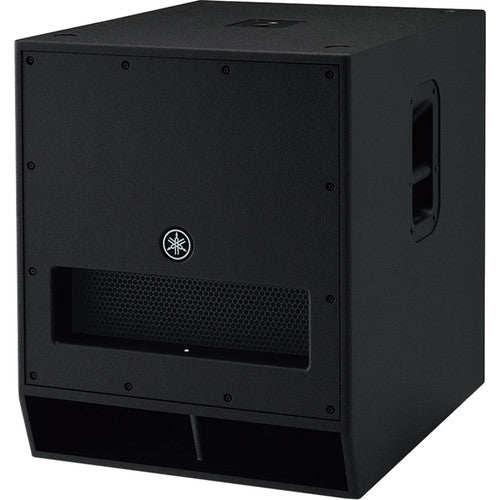

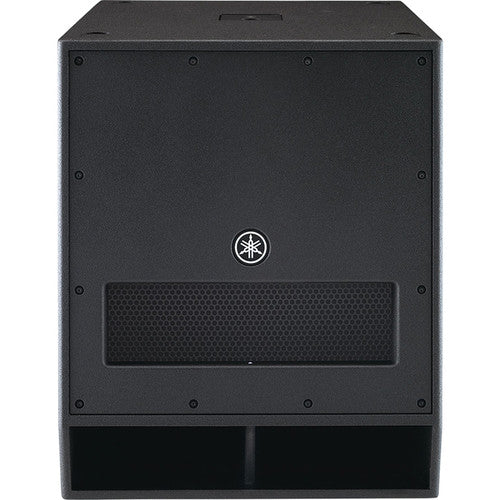

Yamaha DXS18 18" 1020W Active Subwoofer

Yamaha DXS18 18" 1020W Active Subwoofer

Regular price $1,499.99 USD
Regular price Sale price $1,499.99 USD
Sale Sold out
Key Features
  • Optimized Bandpass Enclosure
  • 18" Woofer
  • 1020W Class-D Amplifier
  • Durable Line-X Elastomeric Coating
  • D-XSUB Processing
  • XLR In and Thru Connectors
  • M20 & 35mm Pole Sockets
  • Integrated Handles

The DXS18 18" 1020W Active Subwoofer from Yamaha provides powerful bass reinforcement in a compact design, ideal for use alongside the DXR and DSR full-range loudspeakers. The subwoofer has a wooden enclosure with an optimized bandpass design that delivers high SPL levels with minimal distortion. The high-power 18" woofer is capable of reproducing frequencies as low as 32Hz. It is finished with a durable Line-X elastomeric coating.

The subwoofer is driven by a Class-D amplifier with a peak power rating of 1020W for clear, powerful bass. D-XSUB processing is built into the subwoofer, allowing you to choose between Normal, Boost, or Xtended LF modes. For setups consisting of two or more DXS18 subwoofers, selecting the Cardioid Mode function effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience, resulting in a clearer stage monitoring environment and a more pronounced bass experience out front. The rear panel has XLR input and thru connectors for compatibility with a variety of speakers and sound systems. Standard M20 and 35mm pole sockets allow you to mount a full-range speaker on top of the subwoofer, while integrated handles offer convenient transportation.

Ideal for bass reinforcement alongside the DXR and DSR full-range loudspeakers
The compact wooden enclosure has an optimized bandpass design that delivers high SPL levels with minimal distortion
The high-power 18" woofer is capable of reproducing frequencies as low as 32Hz
The Class-D amplifier has a peak power rating of 1020W for clear, powerful bass
D-XSUB processing is built into the subwoofer, allowing you to choose between Normal, Boost, or Xtended LF modes
Cardioid Mode function effectively decreases stage-side sound pressure while increasing the bottom-end output directed towards the audience

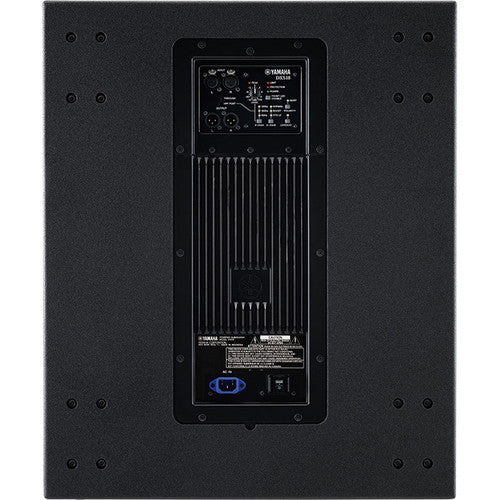

The rear panel has XLR input and thru connectors for compatibility with a variety of speakers and sound systems
Standard M20 and 35mm pole sockets allow you to mount a full-range speaker on top of the subwoofer
Integrated handles offer convenient transportation
Durable Line-X elastomeric coating
PA Speaker
Configuration Active Subwoofer
Enclosure Type Bandpass Subwoofer
Constant Voltage / Transformer Taps None
Amplifier Power Rating 1020 W Program
Amplifier Class Class-D
Drivers
LF Driver 18" / 45.72 cm
LF Voice Coil 4" / 10.16 cm
Performance
Frequency Range 32 Hz to 120 Hz -10 dB
Maximum SPL 136 dB
Gain Range -20 dB to +10 dB
Protections Overcurrent, Thermal
Connectivity
Audio I/O 2 x XLR 3-Pin Balanced Line Input
2 x XLR 3-Pin Balanced Line/High-Pass Thru/Output
Network I/O None
USB None
Wireless Connectivity None
Signal Processing
Crossover High-Pass:
120 Hz
High-Pass:
100 Hz
High-Pass:
80 Hz
EQ None
Parametric EQ None
Semi-Parametric EQ None
Filters None
Alignment Delay None
Phase Adjustment 0 / 180°
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power Connector IEC
Power Consumption 100 W
Physical
Mounting 1 x M20 Pole Socket (Top)
1 x 1.38" / 35 mm Pole Socket (Top)
Handles 1 x Each Side
Cooling Convection
Construction Material Plywood
Dimensions 18.9 x 24.1 x 24.2" / 480 x 611 x 614 mm
Weight 79.4 lb / 36 kg
Specifications
Item # YADXS18
MPN -
Manufacturer Yamaha
