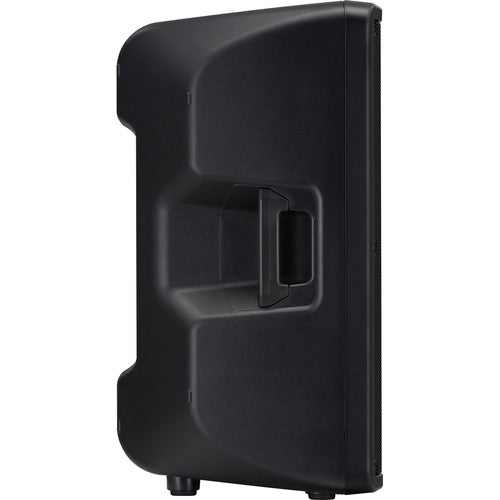

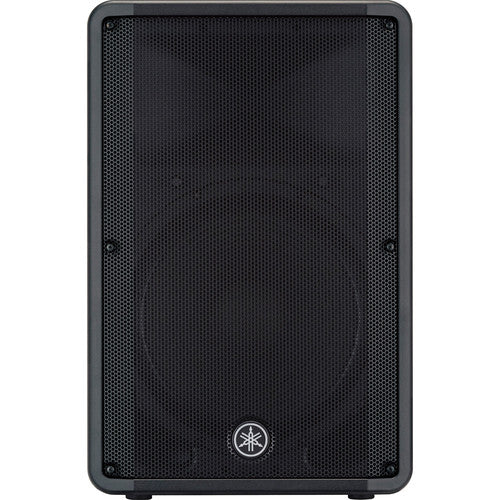

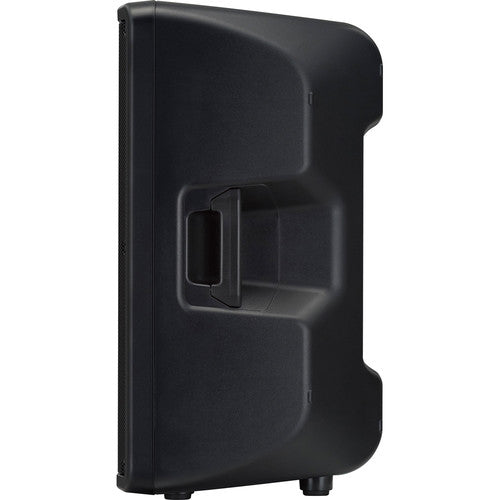

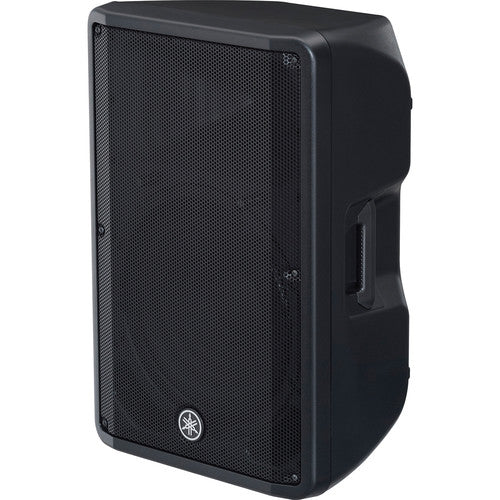

Yamaha DBR15- 15" 2-Way Powered Loudspeaker

$549.99 USD

Sale Sold out

Product variants

Quantity

Key Features

1000W Dynamic Output
Class D Amplifier
15" Woofer & 1.4" HF Driver
On-Board 2-Channel Mixer
Floor, FOH, Rigged Applications
Designed for Portability
Built-In Rigging Points

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR15- 15" 2-Way Powered Loudspeaker from Yamaha is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 15" woofer and a 1.25" compression driver and provides a maximum output of 132 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR15 is portable and can be easily transported.

High-Efficiency Class D Amplifier

The DBR15's lightweight, high performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 132 dB, delivered with clarity and dynamic characteristics

Custom Designed Transducer

The woofer delivers defined, powerful bass with minimal distortion, while the 1.25" precision compression driver produces accurate mid-range and high frequencies

Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

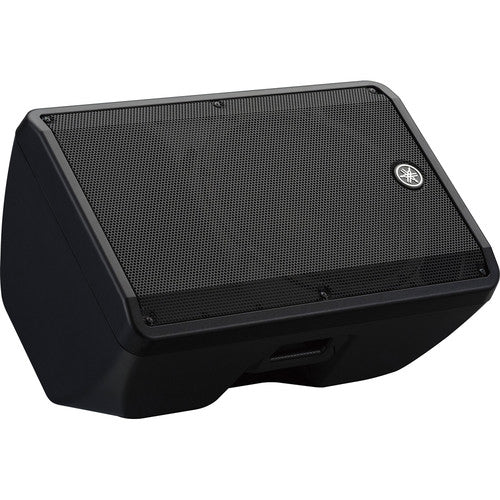

Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

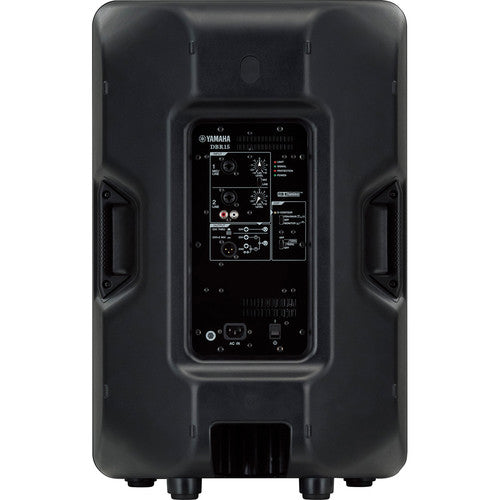

On-Board 2-Channel Mixer

DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts

PA Speaker

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Total Power Capacity	1000 W Peak 465 W RMS
Amplifier Power Rating	LF: 800 W Peak 400 W RMS HF: 200 W Peak 65 W RMS

Drivers

HF Driver	1 x 1.4" / 35.6 mm Compression Driver
LF Driver	1 x 15" / 387 mm Woofer
LF Voice Coil	2.5" / 6.35 cm
Magnet	HF: Ferrite LF: Ferrite

Performance

Frequency Range	50 Hz to 20 kHz -10 dB
Maximum SPL	132 dB SPL
Coverage Angle	90° H x 60° V

Connectivity

Audio I/O

2 x Combo XLR-1/4" TRS Input
1 x Stereo RCA Unbalanced Input
1 x XLR 3-Pin Output

Signal Processing

Crossover

2.1 kHz

Power

AC Input Power	100 to 120 VAC, 50 / 60 Hz
Power Consumption	74 W (1/8 Power) 18 W (Idle)

Physical

Mounting	1 x 1.38" / 35 mm Pole Socket (Bottom) 2 x M8 (Bottom) 1 x M8 (Rear) 1 x Pole Socket
Handles	2 x Side
Cooling	Fan (Variable Speed)
Construction Material	Plastic
Dimensions	17.9 x 27.6 x 14.9" / 455 x 700 x 378 mm
Weight	42.6 lb / 19.3 kg

Specifications

Item #	YADBR15
MPN	-
Manufacturer	Yamaha
