- For Dynamic Microphones
- Simultaneous Broadcasts on Six Channels
- 20 Hz - 20 kHz Frequency Response
- Up to 90' Range
- Five Hours of Battery Life

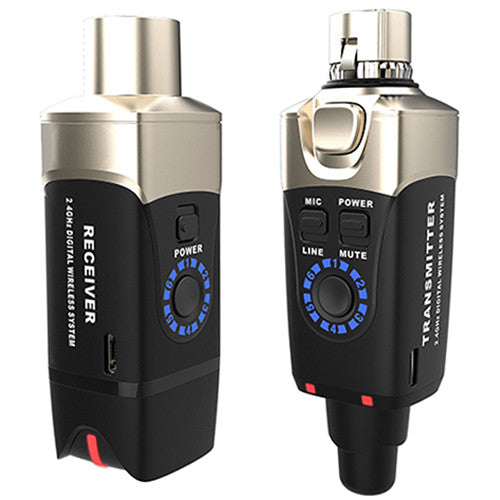

Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship.
Xvive Audio U3 Specs
System
| Wireless Technology |
Digital 2.4 GHz |
| Number of RF Channel Frequencies |
6 |
| Included Transmitters |
1 x Plug-On |
| Diversity |
Non-Diversity |
| RF Frequency Band |
2400 to 2483.5 MHz |
| Max Operating Range |
90' / 27.4 m (Line of Sight) |
| Max Transmitters per Band |
6 |
| Built-In Recorder |
No |
| Timecode Support |
No |
| Control App Support |
No |
| Latency |
5 ms |
| Dynamic Range |
110 dB |
| Encryption |
None |
Receiver
| Receiver Type |
Plug-In |
| Mounting Options |
Plug-In |
| Antenna |
2 x 1/4 Wave Sleeve Dipole, Fixed |
| Number of Audio Channels |
1 |
| Audio I/O |
1 x XLR TRS Male Balanced Mic/Line Output |
| Audio Output Level |
2.8 V p-p |
| Phantom Power Protection |
None |
| Frequency Response |
20 Hz to 20 kHz -3 dB |
| Network I/O |
None |
| Network Protocols |
None |
| Word Clock I/O |
None |
| USB/Lightning Connectivity |
1 x Micro-USB (Charging) |
| Standalone Audio Interface Capable |
No |
| Impedance |
XLR Output:
470 Ohms (Balanced)
Antenna:
50 Ohms |
| Approximate RF Sensitivity |
-88 dBm |
| Power Requirements |
Battery |
| Battery Type |
1 x Built-In Rechargeable |
| Internal Battery Capacity |
860 mAh |
| Battery Charging Time |
2.5 Hour |
| Approx. Battery Life |
5 Hour |
| Display & Indicators |
3 x LED (Battery Status, Channel, Power, Sync) |
| Housing |
Metal, Plastic |
| Dimensions |
1.2 x 1.1 x 3.9" / 31 x 29 x 98 mm |
| Weight |
0.2 lb / 92 g |
Transmitter
| Transmitter Type |
Plug-On |
| RF Output Power |
10 mW (EIRP) |
| Audio I/O |
1 x XLR TRS Female Balanced Input (Lockable) |
| Included Cable Connector |
None |
| Pad |
None |
| Muting |
None |
| Audio Input Level |
2.8 V p-p (Mic Level)
7 V p-p (Line Level) |
| Auto-Level Control |
No |
| Gain Range |
0 / -10 dB |
| Signal Processing |
None |
| Frequency Response |
20 Hz to 20 kHz -3 dB |
| Sync Method |
Manual |
| Antenna |
1 x 1/4 Wave Sleeve Dipole, Fixed |
| Approximate RF Sensitivity |
-88 dBm |
| Power Requirements |
Battery |
| Battery Type |
1 x Built-In Rechargeable |
| Internal Battery Capacity |
860 mAh |
| Battery Charging Time |
2.5 Hours |
| Approx. Battery Life |
5 Hours |
| USB/Lightning Connectivity |
1 x Micro-USB (Charging) |
| Display & Indicators |
3 x LED (Battery Status, Channel, Power, Sync) |
| Housing |
Metal, Plastic |
| Dimensions |
1.2 x 1.1 x 3.9" / 31 x 29 x 98 mm |
| Weight |
3.3 oz / 93 g |
