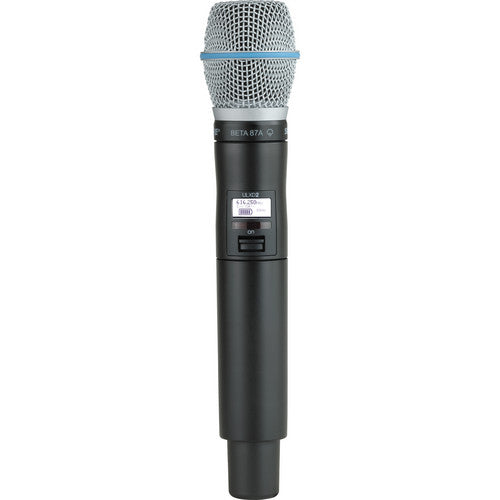

Shure ULXD2/B87A Digital Handheld Wireless Microphone Transmitter with Beta 87A Capsule

Shure ULXD2/B87A Digital Handheld Wireless Microphone Transmitter with Beta 87A Capsule

$750.00 USD
$750.00 USD
Sale Sold out
Frquency Band G50: 470 to 534 MHz H50: 534 to 598 MHz J50A: 572 to 608 + 614 to 616 MHz V50: 174 to 216 MHz X52: 902 to 928 MHz
Configure
Key Features
  • For ULX-D and QLX-D Digital Systems
  • Beta 87A Supercardioid Condenser Capsule
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 1/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

The Shure ULXD2/B87A is a digital handheld wireless microphone transmitter compatible with ULX-D and QLX-D receivers. It comes equipped with the Beta 87A supercardioid condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that offers excellent rejection of off-axis background noise, helping to reduce feedback.

With a rugged, yet lightweight aluminum housing, the ULXD2/B87A transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.

Clear, Accurate Audio with Interchangeable Capsule
  • The unit delivers clear, reliable 24-bit/48 kHz digital audio over its entire 330' range, great for live performances and presentations in music venues, houses of worship, and conference spaces.
  • The Beta 87A supercardioid condenser capsule handles SPL levels up to 140 dB and offers a smooth frequency response with a gradual presence rise and controlled proximity effect tailored for vocals
  • The interchangeable capsule design allows you to replace the Beta 87A capsule with a Shure capsule that’s ideal for your application and simply screw it onto the transmitter—including SM58, SM86, SM87A, Beta 58A, Beta 87C, KSM9 capsules, and more.
User-Friendly Features in a Rugged Housing
  • The unit quickly syncs with a wireless receiver via infrared at the touch of a button.
  • Shure Proprietary Gain Ranging automatically adjusts the mic input level, eliminating the need for transmitter gain adjustments.
  • The power button conveniently doubles as mute switch, while preserving RF lock.
  • Frequency and power lockout functions prevent accidental or unauthorized changes during events.
  • A backlit LCD with easy-to-navigate menu and controls lets you quickly access frequency, group, and channel settings, along with mute and lock status, RF output, and remaining battery life.
  • 1/10/20mW selectable RF output power allows you to increase either the transmitter's range or the number of mics operating simultaneously.
Convenient Power Management Options
  • Operates for up to 11 hours on two AA batteries.
  • Optional Shure SB900A lithium-ion rechargeable battery pack offers intelligent power management with over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
  • External charging contacts allow for docked battery charging with the SBC200 dual-docking charger (available separately).
  • The networkable SBC220 charger (available separately) allows for remote power monitoring via Shure’s Wireless Workbench software.

Shure ULXD2 Specs

Wireless Technology Digital UHF
RF Frequency Band G50:
470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 328.1' / 100 m
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms
Encryption AES 256
Modulation Proprietary
Transmitter
Transmitter Type Handheld
RF Output Power 1 / 10 / 20 mW (Switchable)
Audio I/O None
Muting Off/On Switch
Gain Range 0 to 21 dB (3 dB Steps)
Sync Method IR
Antenna 1 x Internal Single-Band Helical
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life Med.:
11 Hours (Alkaline)
Med.:
12 Hours (Lithium Shure SB900A)
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
Housing Aluminum
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 10.1 x 2" / 256 x 51 mm
Weight 12 oz / 340 g
Microphone
Microphone Type Handheld
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Supercardioid
Frequency Range 20 Hz to 20 kHz
SNR 70.5 dB A-Weighted
Equivalent Noise Level 23.5 dB
Maximum SPL 140.5 dB SPL
THD 1%
Impedance 150 Ohms
Sensitivity -52.5 dBV/Pa
Specifications
Item # SHULXD2BAG50
