Shure BLX14R/W93 Rackmount Wireless Omni Lavalier Microphone System

Shure BLX14R/W93 Rackmount Wireless Omni Lavalier Microphone System

$449.00 USD
$449.00 USD
Sale Sold out
Frquency Band
Key Features
  • For Broadcasters and Performers
  • WL93 Miniature Omnidirectional Lav Mic
  • Lightweight Bodypack Transmitter
  • Single-Channel Rackmount Receiver
  • 123 Auto-Scan Frequencies
  • Two Removable Antennas with Diversity
  • Adjustable Output Level
  • Rugged Metal Construction
  • 14-Hour AA Batteries
  • Expandable to 12 Mic Channels/300' Range

The Shure BLX14R/W93 brings broadcasters, on-screen talent, and theatrical performers a cost-effective wireless lavalier microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit—ideal for broadcast applications.

The BLX14R/W93 also includes a miniature WL93 omnidirectional lavalier mic with clip and windscreen, and a bodypack transmitter. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. It provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

This system is well suited for hands-free speech in TV and home video studios, and can also be used in theatrical productions.

Miniature Omni Lavalier Mic Optimized for Speech

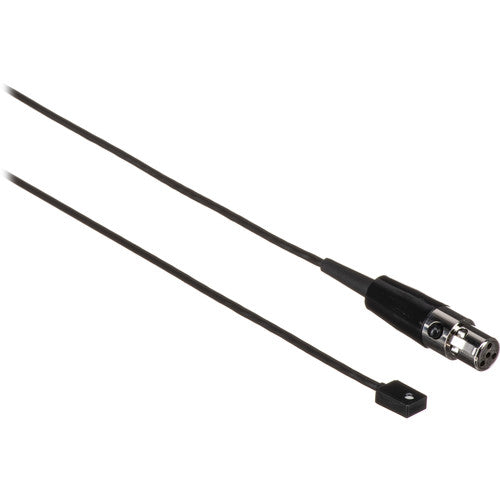

The WL93 condenser microphone is built for low visibility and clear vocal reproduction in low-volume environments. The mic's omnidirectional polar pattern offers consistent pickup even when the talent turns away from the mic, while Commshield RF Filtering minimizes RF interference from nearby smartphones. The tailored frequency response features a controlled low-end roll-off and is optimized for speech intelligibility.
Lightweight Bodypack Transmitter
The durable BLX1 bodypack transmitter offers a lightweight, ergonomic design that is comfortable for the presenter to wear. Group and channel selection buttons allow for quick and simple frequency matching with the receiver. Other features include an easily accessible on/off switch, adjustable gain control, and a TA4M 4-pin input jack.
Easy-to-Use Rackmount Receiver for Quality Audio
The BLX4R receiver employs a microprocessor-controlled antenna diversity feature to improve the quality and reliability of your wireless audio. The receiver can be rackmounted with the included hardware, allowing you to position the two removable antennas on the front of the rack for optimal signal reception.



The LCD display shows group and channel settings, and allows you to meter audio level and signal strength. An LED indicator even lets you keep an eye on the transmitter's remaining battery life. The unit offers 1/4" and XLR connectors with adjustable output level for flexible connectivity to PA systems and mixing boards.

A Versatile System to Meet Your Needs
Shure offers a variety of headset, instrument, and handheld microphone options to adapt your BLX system as your needs evolve.



  • The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
  • The PGA31 is a comfortable, durable headset microphone for active performance.
  • Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
  • The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
  • The BLX2 handheld transmitter is available with three different mic capsules for presenters who prefer the flexibility of a handheld microphone.

Shure BLX14R/W93 Specs

System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 123
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band H9:
512 to 542 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Transmitters per Band 12
Dynamic Range 100 dBA
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Output:
-20.5 dBV (Mic Level)
1/4" Output:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
200 Ohms
1/4" Output:
50 Ohms
Adjacent Channel Isolation >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 260 mA, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight 35.2 oz / 998 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting Off/On Switch
Auto-Level Control No
Gain Range -16 to +10 dB
Sync Method Manual
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
Microphone
Microphone Type Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 50 Hz to 20 kHz
SNR 76 dB
Equivalent Noise Level 28 dB
Maximum SPL 120 dB SPL
Impedance 3000 Ohms
Sensitivity -38 dBV/Pa
Dynamic Range 102 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length 4.17' / 1.27 m
Operating Voltage 2 to 10 V
Weight 0.56 oz / 16 g
Specifications
Item # SHBL14RW93H9
MPN -
Manufacturer Shure
