Shure BLX1288/CVL Dual-Channel Wireless Combo Lavalier & Handheld Microphone System

Shure BLX1288/CVL Dual-Channel Wireless Combo Lavalier & Handheld Microphone System

Regular price $639.00 USD
Regular price Sale price $639.00 USD
Sale Sold out
Frquency Band
Key Features
  • For Two Presenters or Lecturers
  • CVL Cardioid Lav Mic
  • Lightweight Bodypack Transmitter
  • PG58 Cardioid Mic/Transmitter
  • Dual-Channel Tabletop Receiver
  • 123 Auto-Scan Frequencies
  • Internal Antenna Diversity
  • 14-Hr AA Batteries
  • Expandable to 12 Mic Channels/300' Range

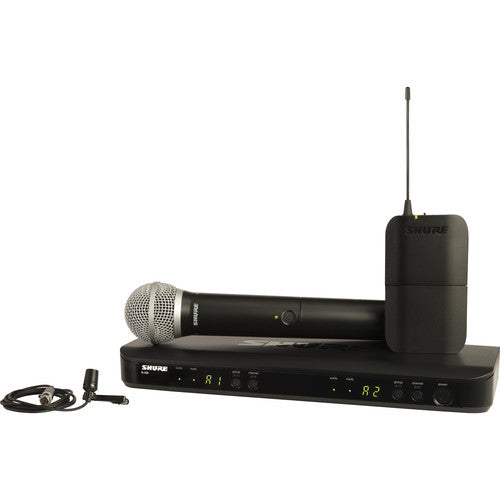

The Shure BLX1288/CVL is a cost-effective wireless lavalier and handheld combo microphone system for two presenters, speakers, teachers, or lecturers which offers quality sound, simple setup, and dependable performance right out of the box. It features the compact and lightweight BLX88 dual-channel tabletop receiver with internal antennas, ideal for portable use.

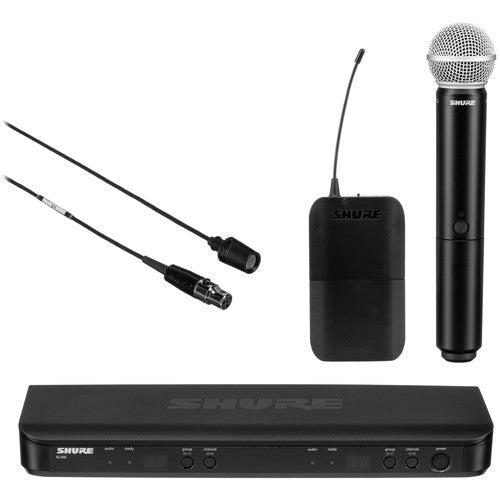

This BLX1288/CVL combo offers a flexible solution by including a bodypack transmitter, a CVL cardioid lavalier mic, and a handheld transmitter equipped with an integrated PG58 dynamic cardioid microphone capsule. The lav provides a discreet hands-free mic option, while the handheld mic is ideal in situations where you don't have time to position a lavalier mic or you need to quickly pass the mic between several people.

The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. The system provides up to 14 hours of continuous use with four AA batteries at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.

This streamlined wireless system is well suited for presentations and events in small venues, wedding halls, and houses of worship, as well as conference, educational, and corporate facilities.

Low-Visibility Lavalier Mic & PG58 Mic Capsule Optimized for Speech
The CVL Centraverse lavalier condenser microphone is built for low visibility and clear vocal reproduction. The mic features a cardioid polar pattern that rejects unwanted noise, Commshield RF Filtering to minimize RF interference from nearby smartphones, and a tailored frequency response optimized for speech intelligibility.



The PG58 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback. The built-in spherical wind and pop filter reduces plosives for clear vocals.

Lightweight Bodypack & Handheld Transmitters

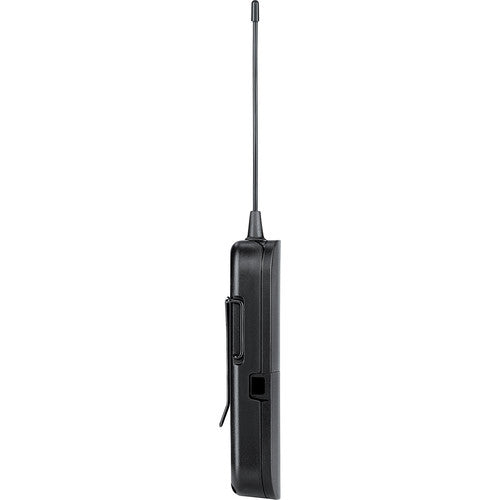

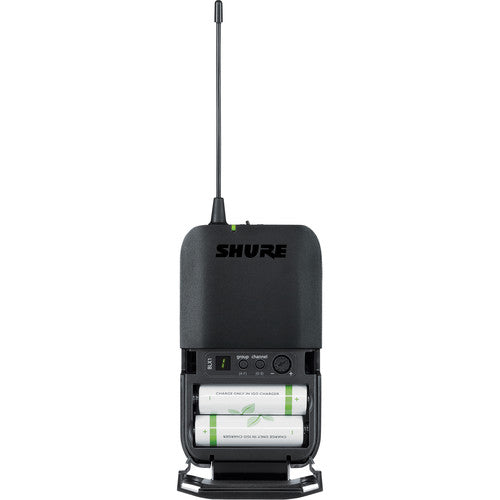

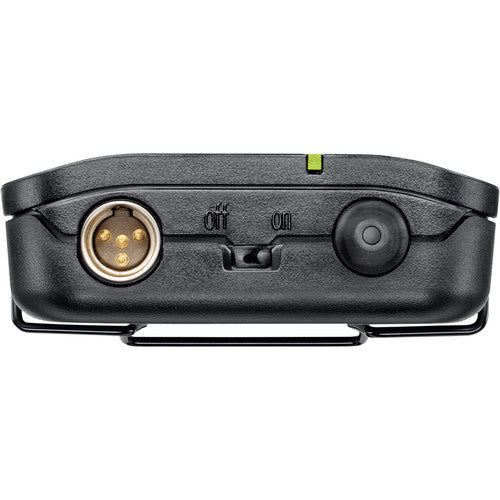

The durable bodypack transmitter offers a lightweight, ergonomic design that is comfortable for the presenter to wear. There is also an easily accessible on/off switch and a TA4M 4-pin input jack.

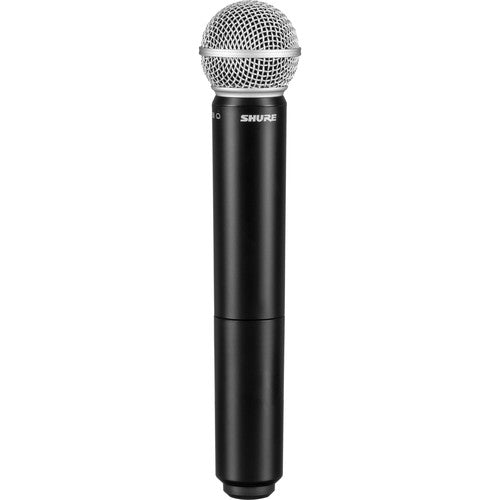

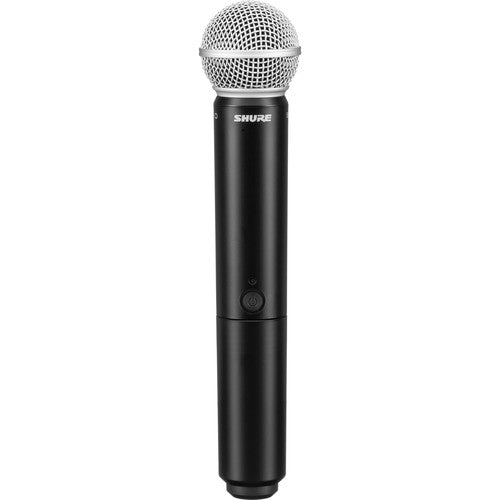

The lightweight handheld transmitter is comfortable to hold and is equipped with an on/off button and a black identification cap. The WA621 Color ID Caps kit containing assorted colored caps is available as an optional accessory.

Both transmitters offer adjustable gain control, along with group and channel selection buttons for quick and simple frequency matching with the receiver.

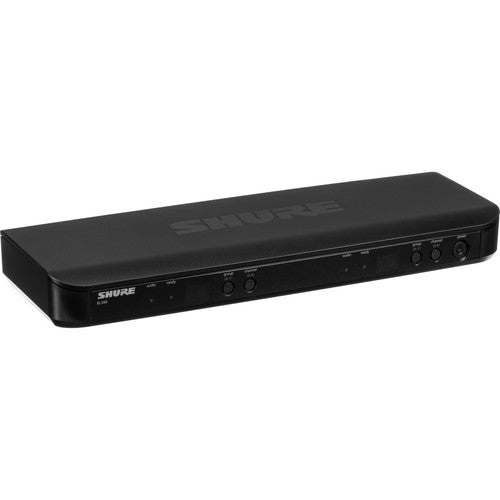

Easy-to-Use Dual-Channel Tabletop Receiver for Quality Audio

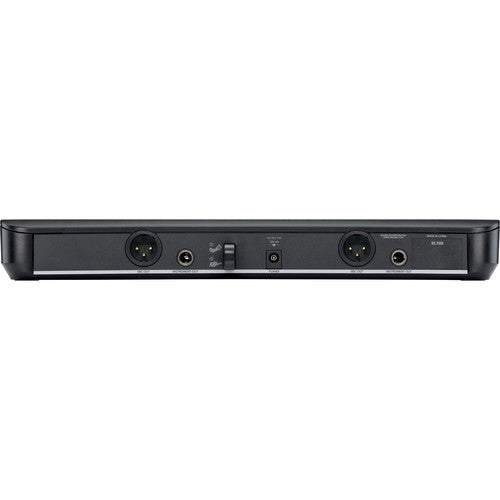

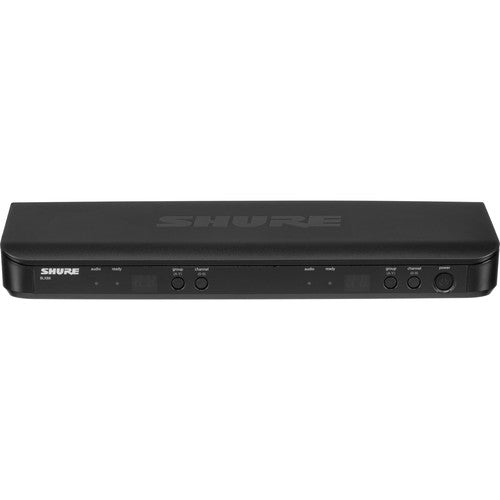

The BLX88 receiver employs a microprocessor-controlled internal antenna diversity feature to improve the quality and reliability of your wireless audio. Two LED displays show group and channel settings, while four LED lights indicate when the system is ready for use and the strength of the incoming audio signal. The unit offers two 1/4" and two XLR outputs for connectivity to PA systems and mixing boards.
A Versatile System to Meet Your Needs
Shure offers a variety of lavalier, instrument, headset, and handheld microphone options to adapt your BLX system as your needs evolve.



  • The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
  • The PGA31 is a comfortable, durable headset microphone for active performance.
  • Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
  • The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 123
Included Transmitters 1 x Bodypack
1 x Handheld
Diversity Antenna Diversity
RF Frequency Band H9:
512 to 542 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Transmitters per Band 12
Dynamic Range 100 dBA
Receiver
Receiver Type Tabletop
Antenna 2 x Internal, Fixed
Number of Audio Channels 2
Audio I/O 2 x XLR 3-Pin Male Balanced Output
2 x 1/4" TRS Female Balanced Output
Audio Output Level XLR Outputs:
-27 dBV (Mic Level)
1/4" Outputs:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Outputs:
200 Ohms
1/4" Outputs:
50 Ohms
Approximate RF Sensitivity -105 dBm
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 160 mA, Center-Positive (Included)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
2 x LED (AF Level, Sync)
Housing ABS
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 15.3 x 1.6 x 4.6" / 388 x 40 x 116 mm
Weight 15.1 oz / 429 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Muting Off/On Switch
Auto-Level Control No
Gain Range -16 to +10 dB
Sync Method Manual
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
Microphone
Microphone Type Lavalier
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Cardioid
Frequency Range 50 Hz to 20 kHz
SNR 72 dB
Equivalent Noise Level 22 dB
Maximum SPL 139 dB SPL
Impedance 600 Ohms
Dynamic Range 117 dB
Output Connectors 1 x TA4/Mini XLR 4-Pin Female (Lockable)
Cable Length 4.27' / 1.3 m
Operating Voltage 5 V
Weight 0.88 oz / 25 g
Transmitter 2
Transmitter Type Handheld
RF Output Power 10 mW
Audio I/O None
Muting Off/On Switch
Auto-Level Control No
Gain Range -20 to -10 dB
Sync Method Manual
Antenna 1 x Internal (Handheld)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
Weight 7.7 oz / 218 g (without Batteries)
Microphone 2
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 50 Hz to 16 kHz
Sensitivity -55 dBV/Pa

Specifications
Item # SHB1288CVLH9
MPN -
Manufacturer Shure
