1 7

Samson

Samson Concert 88x Wireless Lavalier Microphone System with LM5 Lav

Samson Concert 88x Wireless Lavalier Microphone System with LM5 Lav

$199.99 USD
$129.95 USD $199.99 USD
Sale Sold out
Frequency Band
Key Features
  • For Presenters and Performers
  • LM5 Omni Lavalier Mic
  • Bodypack Transmitter & Tabletop Receiver
  • 8-Hour Run Time via AA Batteries
  • One-Touch Automatic Frequency Scan
  • True Diversity, Dual-Antenna Design
  • Balanced XLR and Unbalanced 1/4" Outputs
  • Up to 8 Mics per Band / 300' Range



Ideal for instructors, presenters, worship leaders, and performers, the Samson Concert 88x Wireless Lavalier Microphone System with LM5 Lav offers straightforward operation and quality performance. It features a bodypack transmitter, the LM5 lavalier mic, and a tabletop true-diversity receiver with XLR and 1/4" outputs and a rackmount kit.

With 100 available frequencies, simple syncing via IR, and one-touch automatic frequency scanning, you can quickly get started and find a strong channel. Two AA batteries (available separately) will power the microphone for up to eight hours, and the transmitter's power switch doubles as a handy mute function. If you move beyond the system's 300' line-of-sight operating range, the integrated tone key and auto mute functions mitigate transmission of undesired noise.

User-Friendly Operation
The Concert 88x system is designed for easy setup and reliable operation. Its true-diversity design minimizes dropouts while tone key and auto mute functions prevent unwanted noise when the transmitter is off or out of range. By operating from 470 to 494 MHz in the UHF spectrum, it avoids interference from Bluetooth and Wi-Fi signals.
Bodypack Transmitter with Lavalier Microphone
The CB88 bodypack transmitter connects to the included LM5 lavalier microphone, which clips discreetly to clothing—perfect for presenters and performers in need of a hands-free audio solution.



The mic features an omnidirectional polar pattern for consistent audio levels even when the talent turns away from the microphone.

Two AA batteries (available separately) can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation.

Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity. Generally avoid the maximum gain setting as it can cause distortion when the mic is used on loud sources.

CR88x Tabletop Receiver

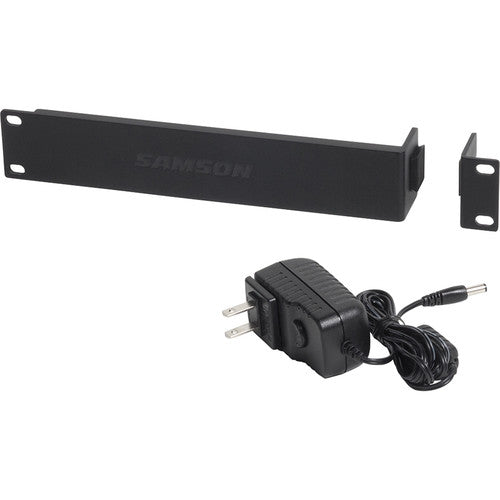

The tabletop receiver includes a rackmount kit for easy installation in an equipment rack or road case. Its balanced XLR and unbalanced 1/4" outputs enable proper hookup to mixers, audio recorders, and PA systems.
System Features
  • 100 operating channels across 25 MHz bandwidth
  • Up to eight systems can be used simultaneously per frequency band (region dependent)
  • 300' operating range (line of sight)
  • One-touch automatic frequency scan finds the best operating channel
  • Two-digit LED display on receiver
  • Infrared link locks the receiver and transmitter to the same channel
System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 100
Included Transmitters 1 x Bodypack with Microphone
Diversity True Diversity
RF Frequency Band D:
542 to 566 MHz
RF Bandwidth Up to 25 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Transmitters per Band 8
Dynamic Range >100 dBA
Encryption None
Pilot Tone 35 kHz
Receiver
Receiver Type Tabletop
Mounting Options Rackmount, Tabletop (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Fixed (Front-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Output:
+9 dBu
1/4" Output:
+14 dBu
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Word Clock I/O None
Impedance XLR Output:
240 Ohms
1/4" Output:
810 Ohms
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 200 mA, Center-Positive (Included)
Display & Indicators 1 x LCD (Channel)
1 x LED (Data Transmission)
1 x LED (Clip)
1 x LED (Sync)
Operating Temperature 14 to 140°F / -10 to 60°C
Dimensions 8.3 x 1.7 x 4.9" / 21 x 4.4 x 12.5 cm
Weight 14.1 oz / 400 g
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW (EIRP)
Audio I/O 1 x TA3/Mini XLR 3-Pin Male Input
Pad None
Muting Off/On Switch
Auto-Level Control No
Gain Range Up to 38 dB
Signal Processing None
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Sync Method IR
Antenna 1 x 1/4 Wave Flexible Whip, Fixed
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 8 Hours (Alkaline)
USB/Lightning Connectivity None
Display & Indicators 1 x LED (Battery Status, Mute, Sync)
Housing Plastic
Dimensions 2.4 x 3.8 x 0.7" / 62 x 96 x 18.5 mm
Weight 3.3 oz / 93 g
Microphone
Microphone Type Lavalier
Color Black
Sound Field Mono
Operating Principle Pressure Gradient
Capsule Electret Condenser
Polar Pattern Omnidirectional
Output Connectors 1 x TA3/Mini XLR 3-Pin Female (Lockable)
Specifications
Item # SAWC88XBLM5K
MPN -
Manufacturer Samson
