Samson Concert 88x Wireless Guitar System

Samson Concert 88x Wireless Guitar System

$199.99 USD
$129.95 USD $199.99 USD
Sale Sold out
Frequency Band
Key Features
  • For Guitar, Bass, Instrument
  • Bodypack Transmitter & Instrument Cable
  • CR88x Tabletop Receiver
  • One-Touch Automatic Frequency Scan
  • True Diversity, Dual-Antenna Design
  • Balanced XLR and Unbalanced 1/4" Outputs
  • 8-Hour Run Time via AA Batteries
  • Up to 8 Channels per Band / 300' Range

The Samson Concert 88x Wireless Guitar System offers musicians straightforward operation and quality performance. It features a bodypack transmitter with a mini XLR to 1/4" guitar cable along with a tabletop true-diversity receiver with XLR and 1/4" outputs and a rackmount kit.

With 100 available frequencies, simple syncing via IR, and one-touch automatic frequency scanning, you can quickly get started and find a strong channel. Two AA batteries (available separately) will power the bodypack transmitter for up to eight hours, and there's a handy silent mute function. If you move beyond the system's 300' line-of-sight operating range, the integrated tone key and auto mute functions mitigate transmission of undesired noise.

User-Friendly Operation
The Concert 88x system is designed for easy setup and reliable operation. Its true-diversity design minimizes dropouts while tone key and auto mute functions prevent unwanted noise when the transmitter is off or out of range. By operating from 470 to 494 MHz in the UHF spectrum, it avoids interference from Bluetooth and Wi-Fi signals.
Bodypack Transmitter with Guitar Cable
The CB88 bodypack transmitter connects to the included 1/4" instrument cable.

Two AA batteries (available separately) can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation.

Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity.
CR88x Tabletop Receiver

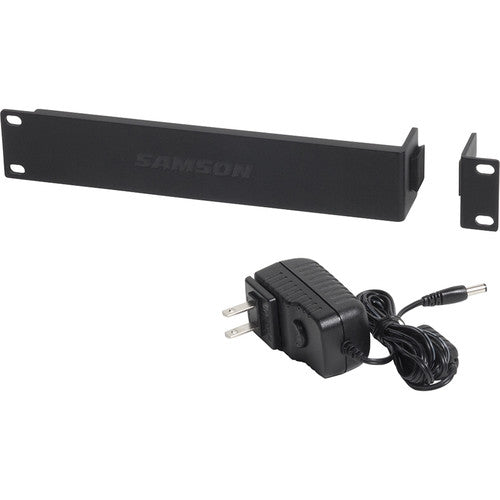

The tabletop receiver includes a rackmount kit for easy installation in an equipment rack or road case. Its balanced XLR and unbalanced 1/4" outputs enable proper hookup to mixers, audio recorders, and PA systems.
System Features
  • UHF wireless system
  • 100 operating channels across 25 MHz bandwidth
  • Up to eight systems can be used simultaneously per frequency band (region dependent)
  • 300' operating range (line of sight)
  • One-touch automatic frequency scan finds the best operating channel
  • Two-digit LED display on receiver
  • Infrared link locks the receiver and transmitter to the same channel



System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 100
Included Transmitters 1 x Bodypack with Cable
Diversity True Diversity
RF Frequency Band D:
542 to 566 MHz
RF Bandwidth Up to 25 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300' / 91.4 m (Line of Sight)
Max Transmitters per Band 8
Dynamic Range >100 dBA
Pilot Tone 35 kHz
SNR >90 dBA
THD <1 %
Receiver
Receiver Type Tabletop
Mounting Options Rackmount, Tabletop (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Fixed (Front-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TS Female Unbalanced Output
Audio Output Level XLR Output:
+9 dBu
1/4" Output:
+14 dBu
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
240 Ohms
1/4" Output:
810 Ohms
Approximate RF Sensitivity -100 dBm
Power Requirements AC/DC Power Adapter
Display & Indicators 1 x LCD (Channel)
1 x LED (Data Transmission)
1 x LED (Clip)
1 x LED (Sync)
Operating Temperature 14 to 140°F / -10 to 60°C
Dimensions 8.3 x 1.7 x 4.9" / 21 x 4.4 x 12.5 cm
Weight 14.1 oz / 400 g
Transmitter
Transmitter Type Bodypack with Cable
RF Output Power 10 mW (EIRP)
Audio I/O 1 x TA3/Mini XLR 3-Pin Male Input
Included Cable Connector 1/4" TS
Pad None
Muting Off/On Switch
Gain Range 38 dB
Signal Processing None
Sync Method IR
Antenna 1 x Flexible Whip, Fixed
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Approx. Battery Life 8 Hours
USB/Lightning Connectivity None
Display & Indicators 1 x LED (Battery Status, Mute, Power)
Housing Plastic
Dimensions 2.4 x 3.8 x 0.7" / 62 x 96 x 18.5 mm
Weight 3.3 oz / 93 g
Specifications
Item # SASWC88XBGTK
MPN -
Manufacturer Samson
