RCF SUB 708-AS MK3 18" Active Subwoofer

RCF SUB 708-AS MK3 18" Active Subwoofer

$1,499.99 USD
$1,499.99 USD
Sale Sold out
Key Features:
  • For Small to Midsize Venues
  • Great for Portable Applications
  • 1400W Class-D Digital Amplifier
  • 18" Woofer, 3" Voice Coil
  • Stereo Crossover, Switchable Frequencies
  • 133 dB Max SPL
  • Baltic Birchwood Bass-Reflex Housing
  • Phase-Reversal Switch
  • Electronic EQ, Soft Limiter, Protections
  • Stereo XLR 3-Pin I/O

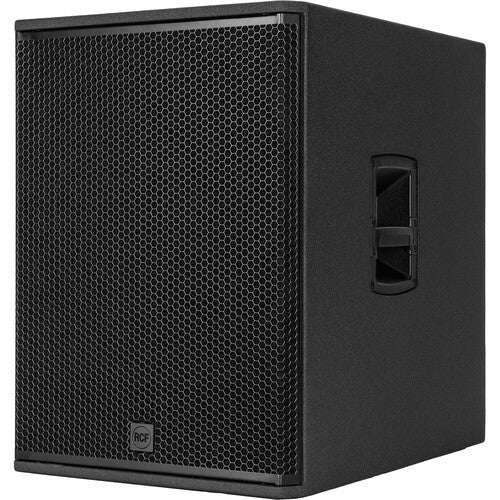

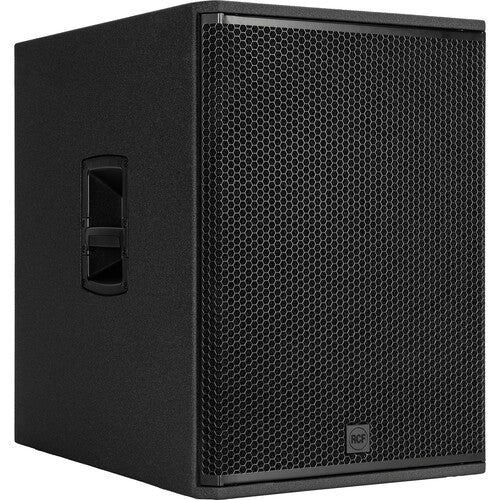

Designed to complement the ART-Series or any full-range speaker, the RCF SUB 708-AS MK3 is a portable 18" high-powered active subwoofer well suited for bands, DJs, clubs, touring companies, and rental houses.

The subwoofer's integrated Class-D amplifier delivers 1400W of peak power to the 18" driver, which offer a frequency response of 35 to 120 Hz with a maximum SPL of 133 dB, making it great for small to midsize venues and touring applications. Rear-panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry, and install securely.

At a Glance
  • 1400W peak (700W RMS) Class-D amplifier
  • 18” woofer, bass-reflex housing
  • 35 to 120 Hz frequency response
  • 133 dB max SPL
  • Stereo crossover
  • Switchable crossover frequencies
  • Polarity-reverse switch
  • Electronic equalization, soft limiter, and protection
  • Stereo XLR input, Stereo XLR signal output
  • Bass Motion Control excursion management
Legendary Subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.
Power That Moves
  • RCF's improvements in transducer design make them stronger and more powerful, so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound-pressure levels with an ultrafast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient, so there's no need for a cooling fan.

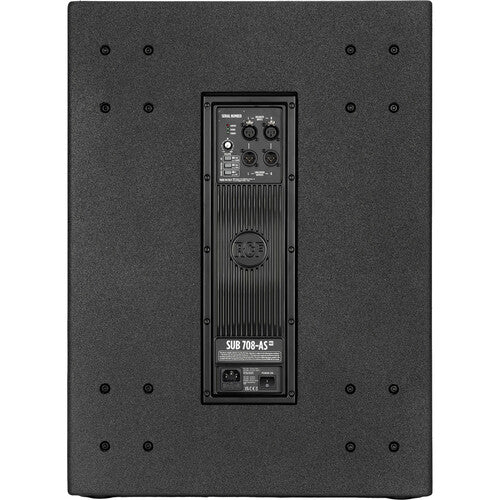

  • The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a switched-mode power supply section joining high-efficiency with minimum weight.
Custom Settings

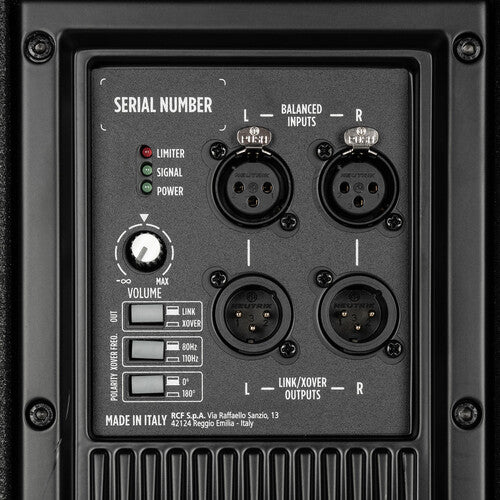

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:


  • Crossover presets: 80 Hz / 120 Hz
  • Polarity reverse
  • Out Signal: line / high pass
Bass Motion Control
  • When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker, equipped with BMC, can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
  • The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits overexcursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Tour-Ready Workhorse

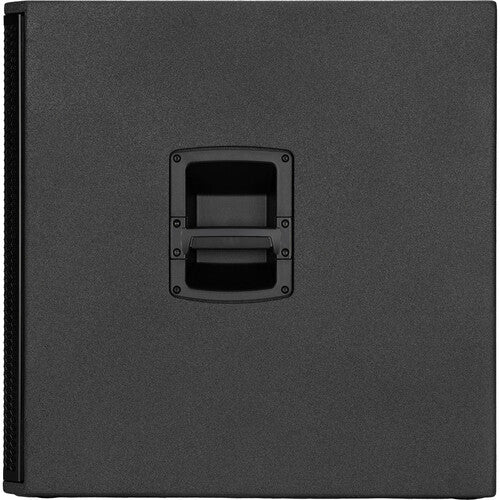

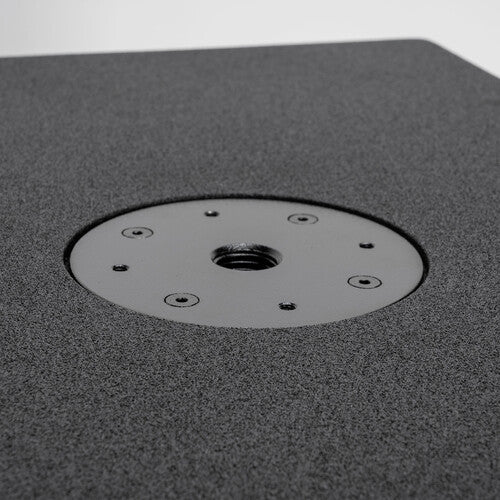

  • The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack due to its light weight. All are equipped with ergonomic handles with rubber grips for easy setup and teardown. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount.

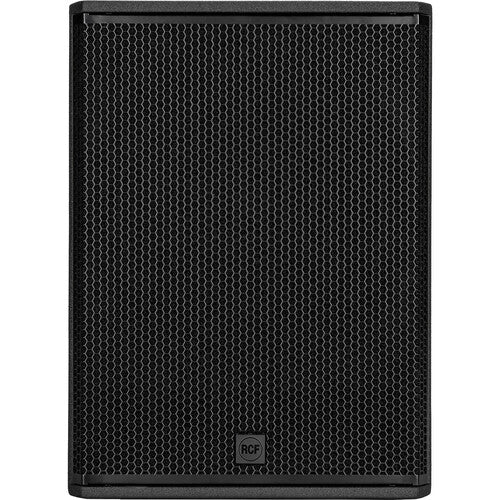

  • The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.
Specifications
Item # -
MPN -
Manufacturer Rcf
