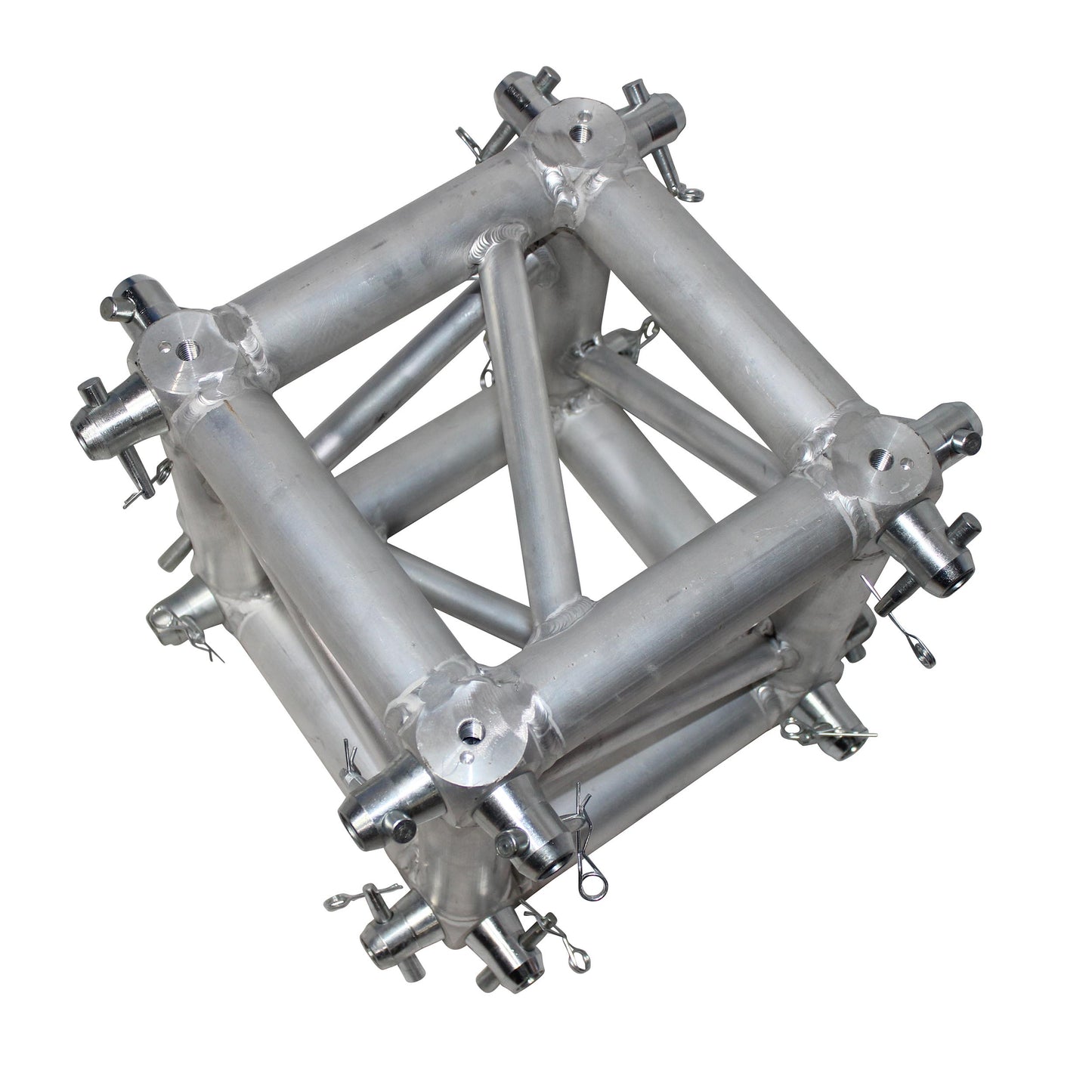

ProX Square 4-Way and 6-Way Truss Junction Block

Name: ProX Square 4-Way and 6-Way Truss Junction Block
Brand: Key Note Music
Price: 328.0 USD
Availability: InStock

$328.00 USD

Sale Sold out

Product variants

Quantity

UNIVERSAL COMPATIBILITY: The ProX XT-JB6W-4W Square Truss Junction Block is designed to seamlessly connect with F34 trusses and comes equipped with connecting hardware for ProX XT F34 square truss components.
ROBUST CONSTRUCTION: Built with XT Series 3mm thick tube walls, this truss junction block is exceptionally strong, making it suitable for a wide range of applications. It features 2" outer diameter tubing and 3/4" diagonal bracing for added stability.
COMPREHENSIVE PACKAGE: This junction block includes 16 Half Conical couplers, providing a versatile setup. For enhanced utility, additional conical couplers can be added (sold separately as XT-CA-103P).
PRECISE SPECIFICATIONS: The XT-SQ SERIES DIMENSIONS are as follows: Height: 11.42in / 290mm, Width: 11.42in / 290mm, Weight: 21lb per 3.28 ft / 9,5kg per meter, Main Tube: 2in / 50mm, Wall Thickness: .11in / 3mm, Braces: .75in / 20mm. The main tube wall thickness is .11in, and it features a tolerance-free standard conical connector.
SAFETY AND PERFORMANCE ASSURANCE: The ProX XT-JB6W-4W Square Truss Junction Block is engineered to meet the standards of safety and performance, providing you with reliable support for your equipment.

Specifications
