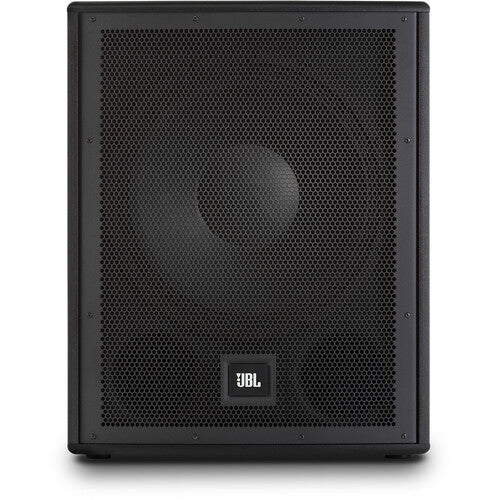

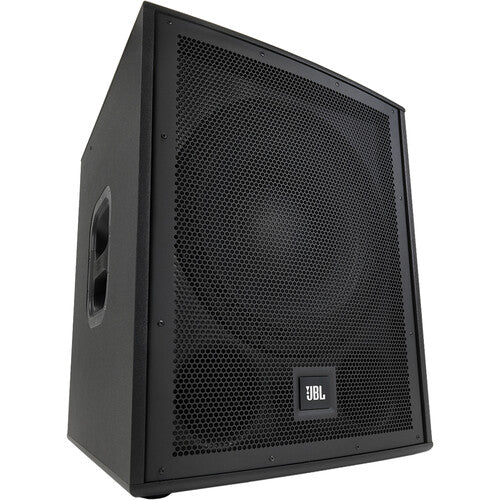

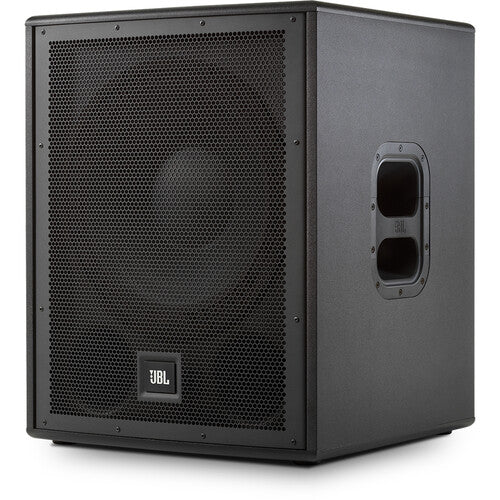

JBL IRX115S Compact Powered 15" Portable Subwoofer

JBL IRX115S Compact Powered 15" Portable Subwoofer

$799.00 USD
$799.00 USD
Sale Sold out
Key Features
  • For Musicians, Presenters, Instructors
  • 15" Woofer
  • 45 to 103 Hz Frequency Response
  • 128 dB Max SPL
  • Preset Crossover Settings
  • Polarity Switch
  • 2 x Combo XLR-1/4" Line Inputs
  • 2 x XLR Thru / Outputs
  • Rigging Points and Pole Cup
  • Includes Power Cord

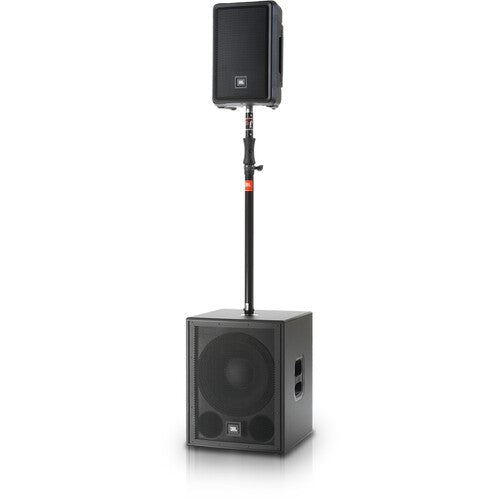

Designed for musicians, performers, presenters, and instructors, the JBL IRX115S is a powered 15" portable subwoofer that's designed to complement the IRX108BT and IRX112BT full-range PA speakers. The subwoofer provides remarkable volume, clarity, and a total ease of use. When combined with the IRX-series tops, the professionally engineered package can outperform larger competing systems.

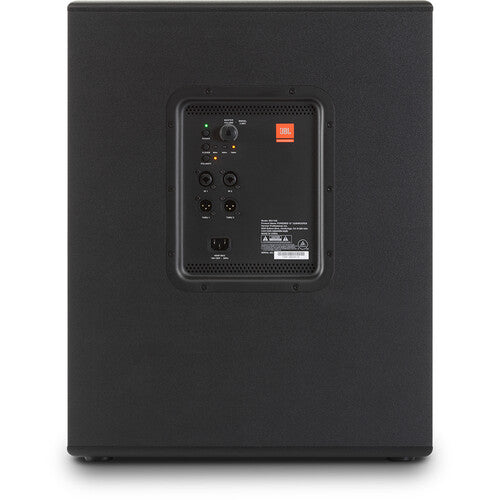

The IRX115S features three user selectable crossover settings (80, 100, 120 Hz) and a polarity switch to let you dial-in an optimal settings quickly and efficiently. The rear panel provides 2-channels of line inputs, each with combo XLR-1/4" connectors as well as two XLR thru to connect additional subwoofers.

The MDF enclosure is rugged and capable of handling the rigors of on-the-road wear and tear. The 1300W amplifier powers the 15" woofer to provide a frequency response of 45 to 103 Hz with a peak SPL of 128 dB. The JBL IRX115S ships with a power cord.

Powerful 15" woofer with 3" voice-coil generates smooth, deep low-frequency response
Selectable 80, 100, and 120 Hz crossover points are optimized for JBL IRX Series loudspeakers
Ported enclosure enhances output and reduces woofer noise
Frequency Response: 45 to 103 Hz (-3 dB)
Power Rating: 1300W
Max SPL: 128 dB
I/Os: 2 XLR-1/4" combo inputs, 2 XLR out (thru)
Polarity switch optimizes system response
Lightweight, road-tested MDF cabinet

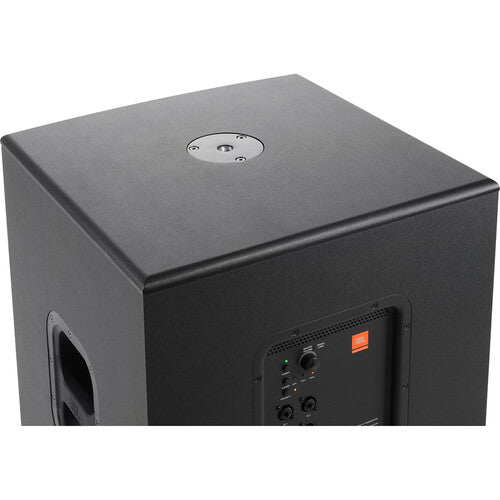

Built-in pole mount expands system configuration options
Reinforced grille offers rugged protection without compromising acoustic performance
Ergonomic handles make transport easy
Lightweight at 65.3 lb
Amplifier Power Rating 1300 W Peak
Enclosure Type Bass-Reflex
Subwoofer Driver 15" / 381 mm Woofer
Subwoofer Voice Coil 3" / 76.2 mm
Signal Processing
Crossover 80 to 120 Hz
Performance
Frequency Response 45 Hz to 103 Hz -3 dB
35 Hz to 147 Hz -10 dB
Maximum SPL 128 dB
I/O Impedance Line Input:
100 Kilohms (Balanced)
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru/Output
AC Input Power 120 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC Input
Physical
Transport Options 1 x Handle (Each Side)
Mounting M20 Pole Socket
Construction Material MDF, Metal Grille
Dimensions 23.6 x 18.9 x 18.9" / 599.4 x 480.1 x 480.1 mm
Weight 65.3 lb / 29.6 kg
Specifications
Item # JBLIRX115SNA
MPN -
Manufacturer JBL
